| Brand Name: | ZH |
| Model Number: | P101.6,P142,P200,P260 |
| MOQ: | 100m |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, D/P, D/A |

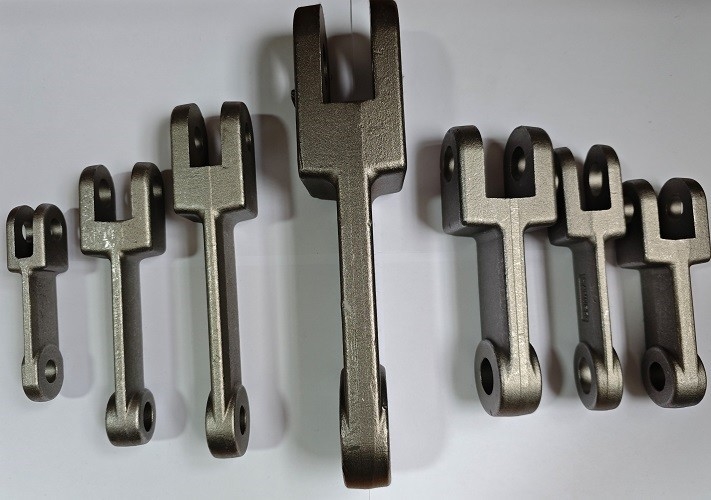

P200 P14218 P101.6 Forged Link Chain Lifting Transportation Mining Usage
P14218 forged link chains,P101.6,P200
Forged fork link chain has proven to be one of the most reliable conveying mediums offering a combination of versality, strength and abrasion resistance.
Forged fork link chains are manufactured from special heat-treated alloy steel casehardened or through hardened. All our links are heat treated in house providing consistent optimum hardness and tough core for maximum shock resistance and highly wear resistance surface ideal in handling abrasive materials.
Forged fork Link chains are assembled with forged links to design conveyor belts that are used for conveying goods and heavy loads in industrial sector. Our Forged Link is made in complete adherence with international quality standards using best quality materials. We hold the expertise to customize these chains as per the needs of the clients.
Die forging scraper chain is a type of chain manufactured through die forging technology, mainly used for buried scraper conveyors, suitable for industries such as grain machinery, mining machinery, steel mills, and power plants. The forging scraper chain is composed of different combinations of scraper chain links or traction chain links. The chain links are forged products, and the pin shaft is generally treated with alloy steel integral heat treatment or surface high-frequency treatment to improve the surface hardness of the pin shaft
1.Structural characteristics
The main structure of forging scraper chain includes chain rod and pin shaft. The chain rod is made by forging or rolling, and then machined. The chain rod is divided into three parts: the large head, the small head, and the rod body. The surface is treated with low-carbon alloy steel carburizing, which has high surface wear resistance and excellent comprehensive mechanical properties
2.Performance characteristics
High strength: The forging chain has the characteristics of high strength and wear resistance, suitable for heavy-duty working conditions.
Long lifespan: Due to its excellent mechanical properties and wear resistance, the service life of forging chains is relatively long.
Low maintenance: The forging chain has less friction during operation, reducing maintenance requirements
two
3.application area
Die forging scraper chains are widely used in heavy-duty transmission applications such as grain machinery, mining machinery, steel mills, and power plants. Its high strength and long lifespan make it outstanding in these fields
| Chain model | Pitch | Size | |||||||
| P | B | C | A | D | E | F | G | H | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| P100-1 | 100 | 30 | 44 | 14.5 | 34 | 16 | 33 | 15.5 | 13 |
| P100-2 | 100 | 38 | 49 | 16 | 41 | 12 | 27 | 11 | 8 |
| P100-3 | 100 | 36 | 52 | 14 | 39 | 14.5 | 30 | 13.5 | 9 |
| P101.6 | 101.6 | 36 | 52 | 14 | 39 | 14.5 | 30 | 13.5 | 8 |
| P125-1 | 125 | 34 | 43 | 17 | 36 | 18 | 34 | 16.5 | 10 |
| P125-2 | 125 | 40 | 68 | 17 | 43 | 20 | 48 | 18 | 15 |
| P142-1 | 142 | 46 | 73 | 26 | 50 | 21 | 46 | 20 | 11 |
| P142-2 | 142 | 50 | 71 | 25 | 55 | 21 | 42 | 19 | 11 |
| P142-3 | 142 | 50 | 71 | 25 | 55 | 22 | 46 | 20 | 13 |
| P142-4 | 142 | 50 | 71 | 25 | 55 | 23 | 54 | 22 | 14 |
| P142-5 | 142 | 50 | 73 | 25 | 55 | 32 | 62 | 30 | 16 |
| P152 | 152 | 56 | 76 | 25 | 60 | 33 | 70 | 30 | 18 |
| P160 | 160 | 50 | 71 | 25 | 55 | 21 | 42 | 19 | 13 |
| P180 | 180 | 55 | 83 | 25 | 62 | 31.5 | 70 | 30 | 25 |
| P200-1 | 200 | 46 | 89 | 20 | 52 | 21 | 44 | 20 | 12 |
| P200-2 | 200 | 50 | 81 | 25 | 54 | 26 | 56 | 24 | 17 |
| P200-3 | 200 | 70 | 115 | 30 | 76 | 32 | 62 | 30 | 20 |
| P250 | 250 | 76 | 118 | 32 | 90 | 32 | 70 | 30 | 21 |
| P260 | 260 | 76 | 118 | 32 | 90 | 32 | 70 | 30 | 21 |
