| Brand Name: | ZH |
| Model Number: | P101.6,P142,P200,P260 |
| MOQ: | 100m |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, D/P, D/A |

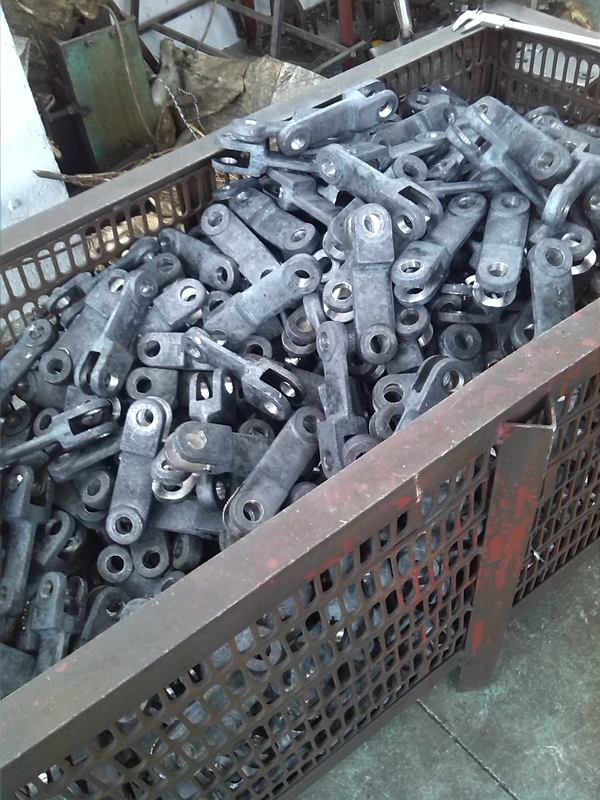

P14218 Forged Link Chains P101.6 P200 Heavy Duty Industrial Agricultural
P14218 forged link chains,P101.6,P200
Forged Link Chain works well in challenging environments with different kind of impurities, moisture and heat. The chain is typically used to transport bulk materials and equipped with an application specific scraper. Compatible with other Drop Forged Link Chains on the market (see technical data). Standard parts available in stock. Customized scraper chains within short delivery time.
Die forging scraper chain is a type of chain manufactured through die forging technology, mainly used for buried scraper conveyors, suitable for industries such as grain machinery, mining machinery, steel mills, and power plants. The forging scraper chain is composed of different combinations of scraper chain links or traction chain links. The chain links are forged products, and the pin shaft is generally treated with alloy steel integral heat treatment or surface high-frequency treatment to improve the surface hardness of the pin shaft
1.Structural characteristics
The main structure of forging scraper chain includes chain rod and pin shaft. The chain rod is made by forging or rolling, and then machined. The chain rod is divided into three parts: the large head, the small head, and the rod body. The surface is treated with low-carbon alloy steel carburizing, which has high surface wear resistance and excellent comprehensive mechanical properties
2.Performance characteristics
High strength: The forging chain has the characteristics of high strength and wear resistance, suitable for heavy-duty working conditions.
Long lifespan: Due to its excellent mechanical properties and wear resistance, the service life of forging chains is relatively long.
Low maintenance: The forging chain has less friction during operation, reducing maintenance requirements
two
3.application area
Die forging scraper chains are widely used in heavy-duty transmission applications such as grain machinery, mining machinery, steel mills, and power plants. Its high strength and long lifespan make it outstanding in these fields
| Chain model | Pitch | Size | |||||||
| P | B | C | A | D | E | F | G | H | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| P100-1 | 100 | 30 | 44 | 14.5 | 34 | 16 | 33 | 15.5 | 13 |
| P100-2 | 100 | 38 | 49 | 16 | 41 | 12 | 27 | 11 | 8 |
| P100-3 | 100 | 36 | 52 | 14 | 39 | 14.5 | 30 | 13.5 | 9 |
| P101.6 | 101.6 | 36 | 52 | 14 | 39 | 14.5 | 30 | 13.5 | 8 |
| P125-1 | 125 | 34 | 43 | 17 | 36 | 18 | 34 | 16.5 | 10 |
| P125-2 | 125 | 40 | 68 | 17 | 43 | 20 | 48 | 18 | 15 |
| P142-1 | 142 | 46 | 73 | 26 | 50 | 21 | 46 | 20 | 11 |
| P142-2 | 142 | 50 | 71 | 25 | 55 | 21 | 42 | 19 | 11 |
| P142-3 | 142 | 50 | 71 | 25 | 55 | 22 | 46 | 20 | 13 |
| P142-4 | 142 | 50 | 71 | 25 | 55 | 23 | 54 | 22 | 14 |
| P142-5 | 142 | 50 | 73 | 25 | 55 | 32 | 62 | 30 | 16 |
| P152 | 152 | 56 | 76 | 25 | 60 | 33 | 70 | 30 | 18 |
| P160 | 160 | 50 | 71 | 25 | 55 | 21 | 42 | 19 | 13 |
| P180 | 180 | 55 | 83 | 25 | 62 | 31.5 | 70 | 30 | 25 |
| P200-1 | 200 | 46 | 89 | 20 | 52 | 21 | 44 | 20 | 12 |
| P200-2 | 200 | 50 | 81 | 25 | 54 | 26 | 56 | 24 | 17 |
| P200-3 | 200 | 70 | 115 | 30 | 76 | 32 | 62 | 30 | 20 |
| P250 | 250 | 76 | 118 | 32 | 90 | 32 | 70 | 30 | 21 |
| P260 | 260 | 76 | 118 | 32 | 90 | 32 | 70 | 30 | 21 |
