| Brand Name: | ZH |
| Model Number: | 458 |
| MOQ: | 100 |
| Price: | negotiable |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, D/P, D/A |

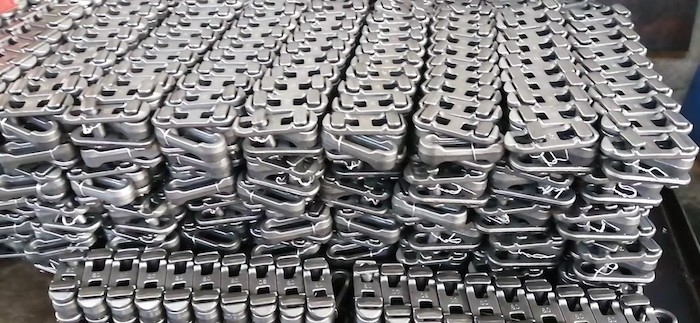

X458 Alloy Steel 4" Forged Detachable Chain For I Beam Systems
4" CHAINS FOR I-BEAM SYSTEMS,
Conveyor Chains drop forged chain,forged chain, forged conveyor chains ,forged suspending chain,drop forged rivetless chain and yokes, forged suspending chain, Scraper chain,square chain, steel detachable chain, painting line chain, Cat Pilar chain. Caterpillar chain, drop forged link, drop forged conveyor chain, conveyor chain, car assembling line chain, forged scraper chain, drop forged folding chain, detachable chain such as X348 chain, X458 chain, X678 chain, X698 chain(698 chain), P142 chain(scraper chain), P142V chain, P142H chain, P200 chain, P102 chain, P260 chain, P250 chain, detachable chain 51 chain, 52 chain, 55 chain, 57 chain, 62 chain, 74chain, 78 chain.
Our Drop forge rivetless Chain are widely used in conveyor lines
ZH offers chain in multiple sizes, X-348 ,X-458 , X-678,468,698 and 9118. Chain is drop forged, rivetless, and is extremely flexible on both vertical and horizontal curves. chain provides strength and flexi-bility to accommodate all I-Beam conveyor applications.
This type of chain is generally used in high-altitude conveying equipment, mainly in the pre-processing industry, such as electrophoresis, painting, and so on. Has good wear resistance and tensile strength. Easy to repair and replace.
| Chain model | Pitch | Pin diameter | Pin length | Size | min | |||||
| P | d | H(max) | B(max) | c | n | b | m(min) | t | Tensile strength | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
| P2-80-106 | 80 | 12 | 47 | 29.5 | 12.5 | 18.3 | 13.5 | 20 | 6.5 | 98 |
| X348 | 76.6 | 12.5 | 48 | 29.5 | 13 | 18 | 14 | 20 | 9.5 | 98 |
| P2-100-220 | 100 | 16 | 58 | 36.6 | 16 | 25.5 | 18.3 | 27.6 | 7 | 187 |
| X458 | 102.4 | 16 | 58 | 36.6 | 16 | 25.5 | 18.3 | 27.6 | 12 | 187 |
| P2-80-290 | 80 | 18 | 70.5 | 42 | 19 | 32 | 19.5 | 33 | 10 | 250 |
| 468 | 102.4 | 19.1 | 84 | 49 | 29 | 40.9 | 25 | 43.2 | 11 | 302 |
| X678 | 153.2 | 22.1 | 77 | 51.6 | 21.5 | 32 | 24.5 | 33.5 | 16.5 | 320 |
| P2-160-400 | 160 | 24 | 84 | 54 | 20 | 33.8 | 27.5 | 37 | 12 | 360 |
| 698 | 153.2 | 28.4 | 95.3 | 68.3 | 25.4 | 39.1 | 30 | 41.7 | 14.5 | 605 |
| 998 | 229.4 | 28.4 | 95.3 | 68.3 | 25.4 | 39.1 | 30 | 41.7 | 16 | 605 |
